Create a Connection in SyncRoom

SyncRoom streamlines the process of creating connections between different work management systems. This guide walks you through creating a connection with automated system registration and configuration.

Before You Begin

To create a connection in SyncRoom, you'll need:

• An active SyncRoom account with a Network
• Access credentials for the systems you want to connect

System Requirements:

• For Azure DevOps: A Personal Access Token (PAT) with Work Items (Read & Write) scope
• For ServiceNow: Username and password
• For Freshdesk: API key
• For Freshservice: API key

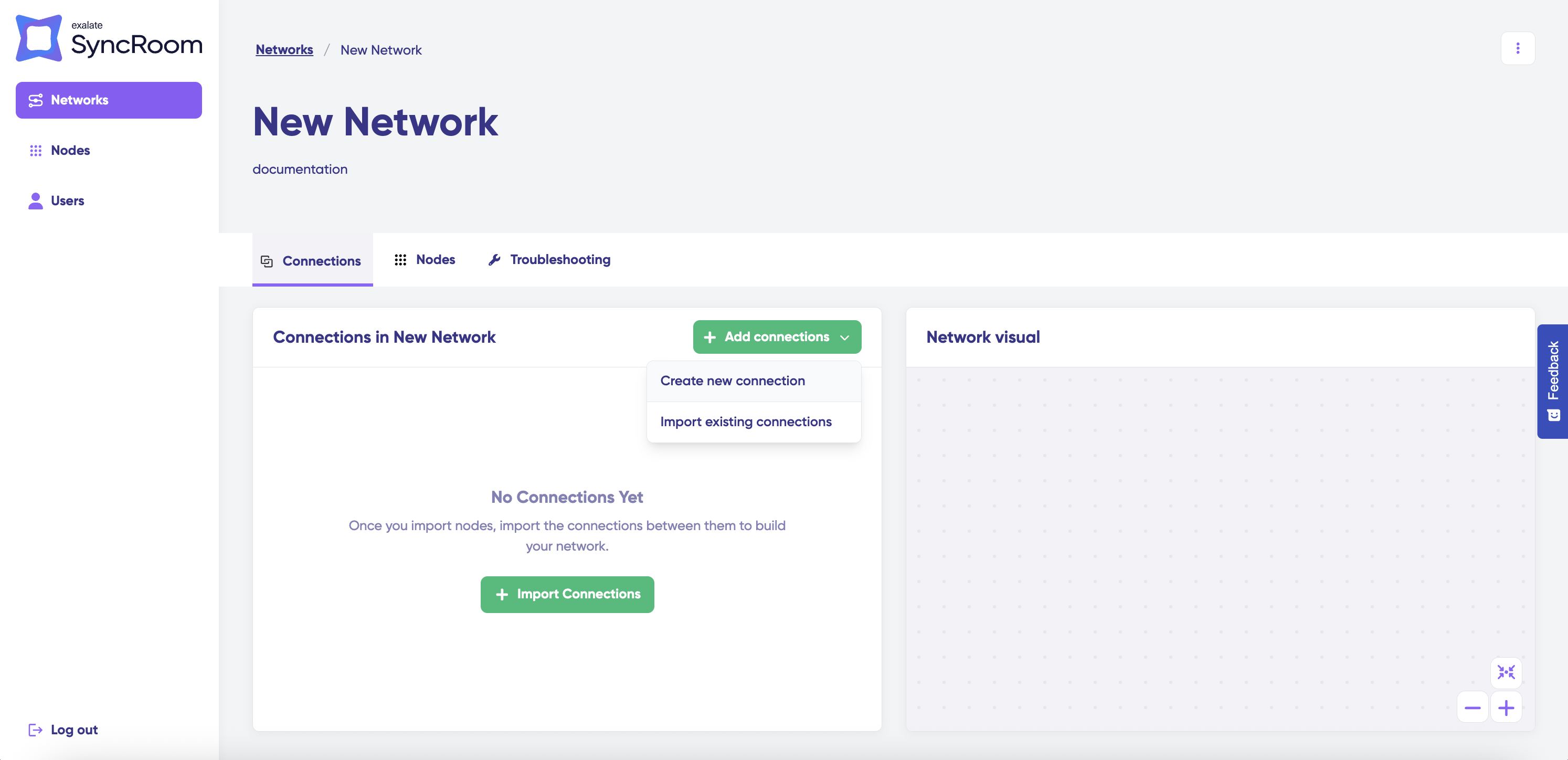

Start With the Connection Wizard

1. Log in to your SyncRoom account.

2. From the Networks list, select your network.

3. Click Add Connections > Create New Connection.

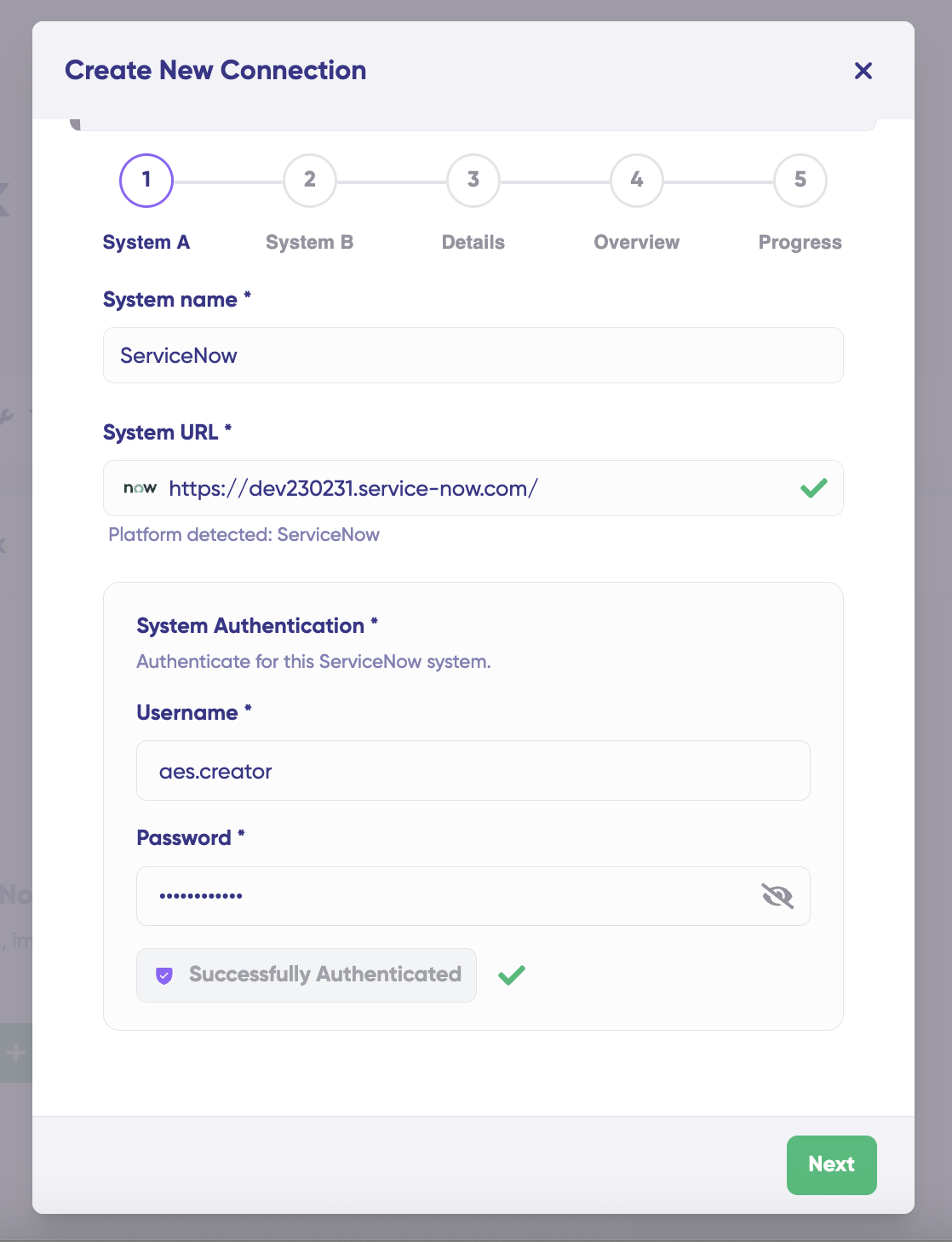

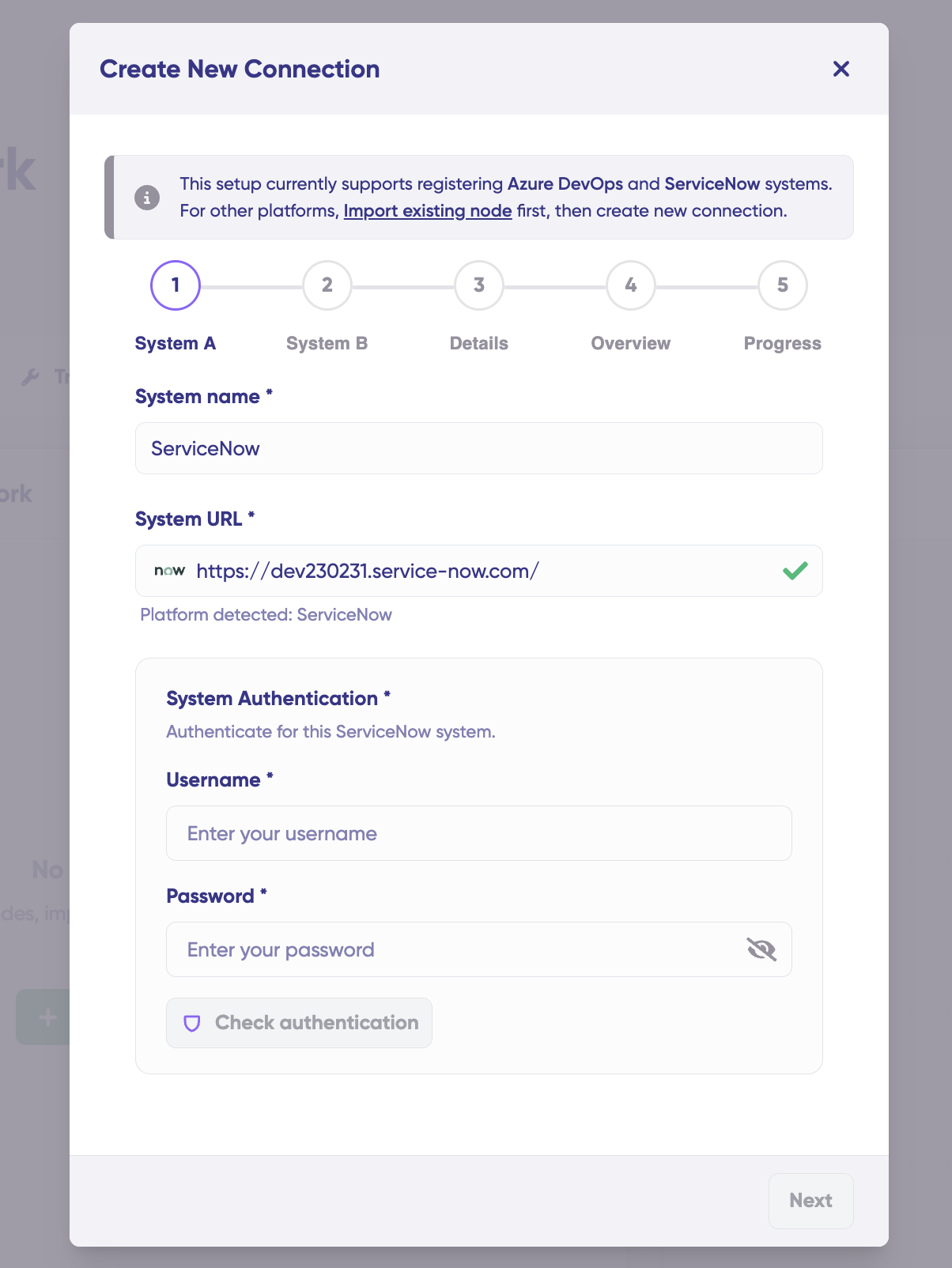

Configure System A

1. Enter the system URL:

• For Azure DevOps: https://dev.azure.com/{your-organization}
• For ServiceNow: https://{your-instance}.service-now.com
  SyncRoom automatically detects the system type based on the URL you enter.

2. System status check:

When you enter a URL, SyncRoom checks if the system is already registered:

• If the system is already part of your network, you'll see a confirmation message and can skip authentication.
• If the system is registered but in a different network, you'll see: "System registered, but not yet part of Network '[Your Network Name]'". You can continue—the system will be added to your network during connection creation.
• If the system is new, authentication fields appear automatically.

3. Authenticate the system:

If authentication is required, provide your credentials:

• Azure DevOps: Enter your Personal Access Token (PAT) with Work Items (Read & Write) scope.
• ServiceNow: Enter your username and password.

Click Check Authentication and wait for validation. Once successful, the Next button becomes active.

4. Click Next to proceed to System B.

Configure System B

Follow the same steps as System A:

1. Enter the system URL for your second system.
2. Wait for automatic system type detection.
3. If required, provide authentication credentials.
4. Click Check Authentication to verify.
5. Click Next to continue.

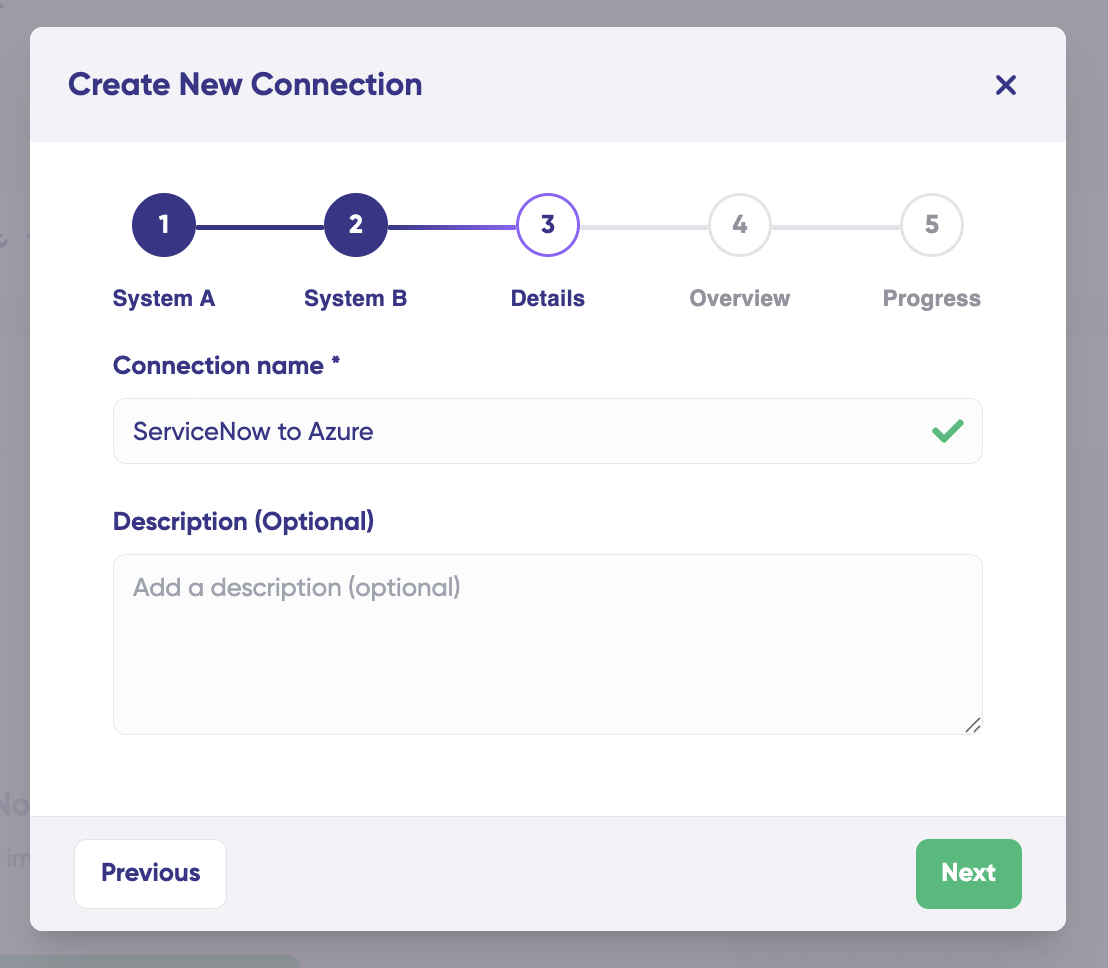

Name Your Connection

1. Connection name

Enter a unique, descriptive name for your connection. The name must be unique between these two systems.

Examples:

• "ADO-ServiceNow-ProductTeam"
• "Development-Support-Sync"
  If this is not your first connection between the systems and the name already exists, you'll see an error message prompting you to choose a different name

2. Connection description (optional):

Add a brief description to help identify the connection's purpose, such as "Sync product development tasks between Azure DevOps and ServiceNow."

3. Click Next to review your configuration.

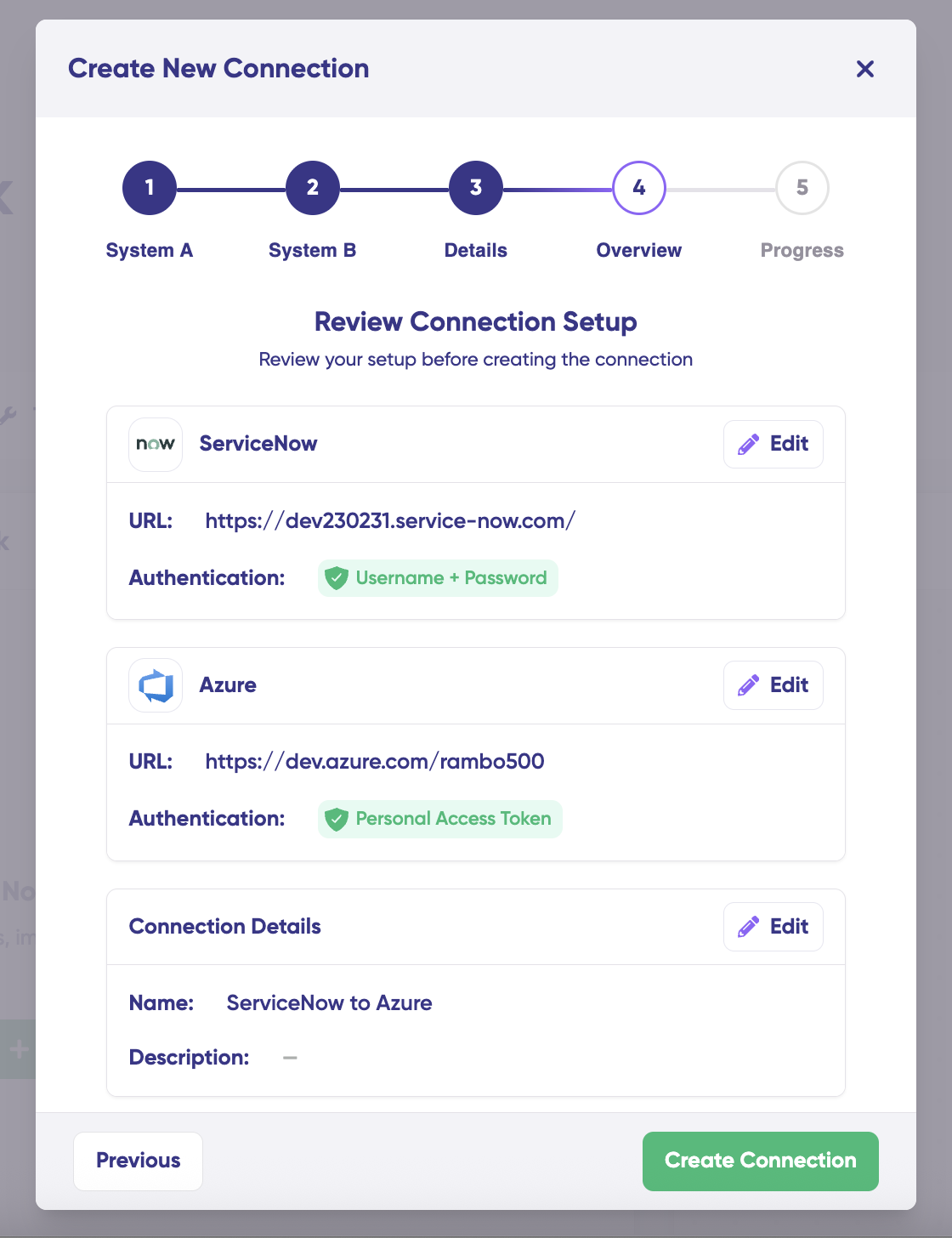

Review and Create

1. Review the details of your connection:

• System A: Verify the system type, URL, and authentication status
• System B: Verify the system type, URL, and authentication status
• Connection Details: Confirm the connection name and description

2. Click Create Connection to begin the setup process.

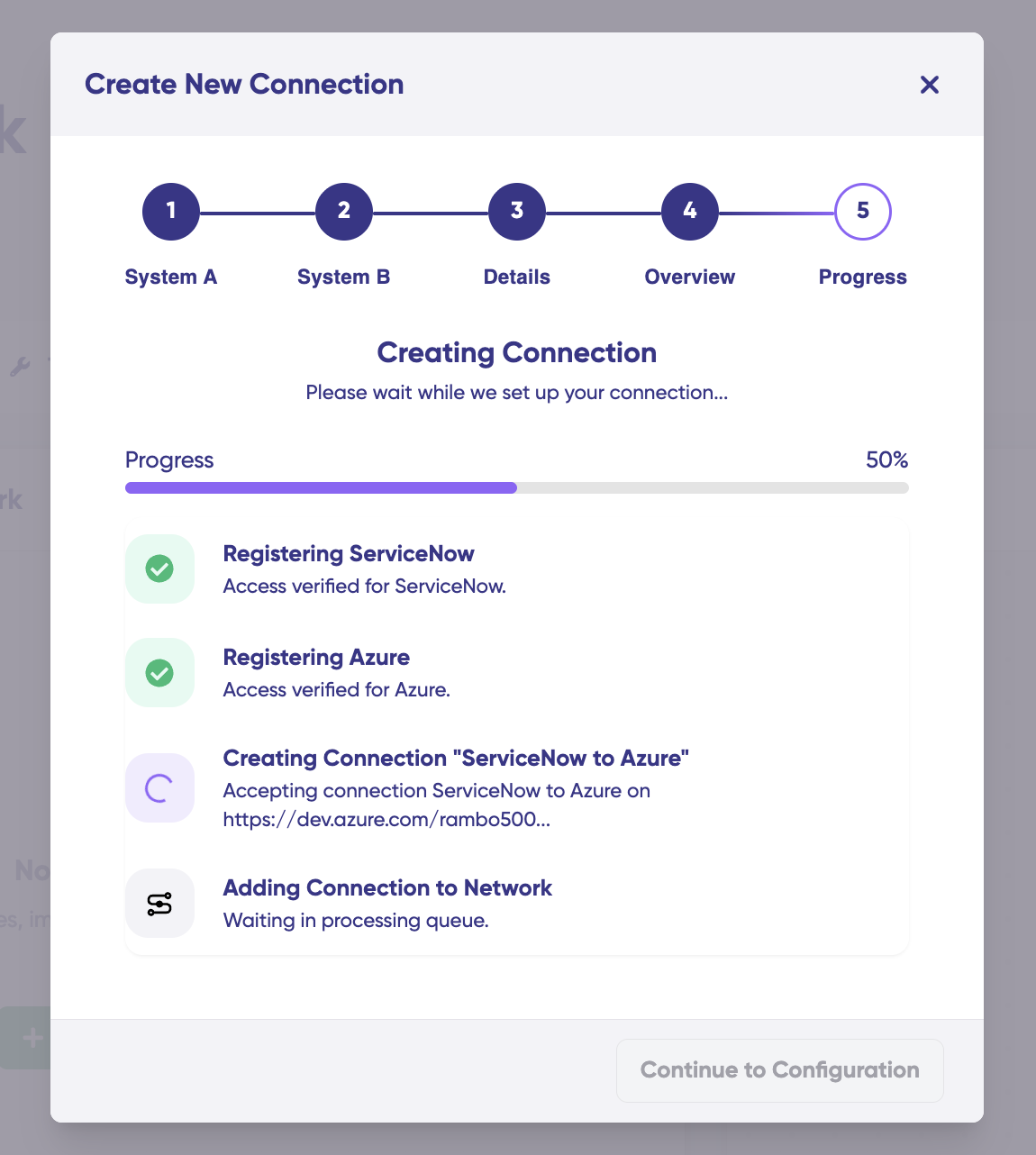

Monitor Progress

SyncRoom automatically registers your systems and establishes the connection. You'll see real-time updates as the process completes:

System Registration:

• Validating credentials
• Checking for existing nodes
• Registering new nodes (if needed)
• Configuring node settings

Connection Establishment:

• Creating the bidirectional connection
• Finalizing setup

The progress screen shows the status of each step and an estimated time remaining. The process typically takes1-2 minutes.

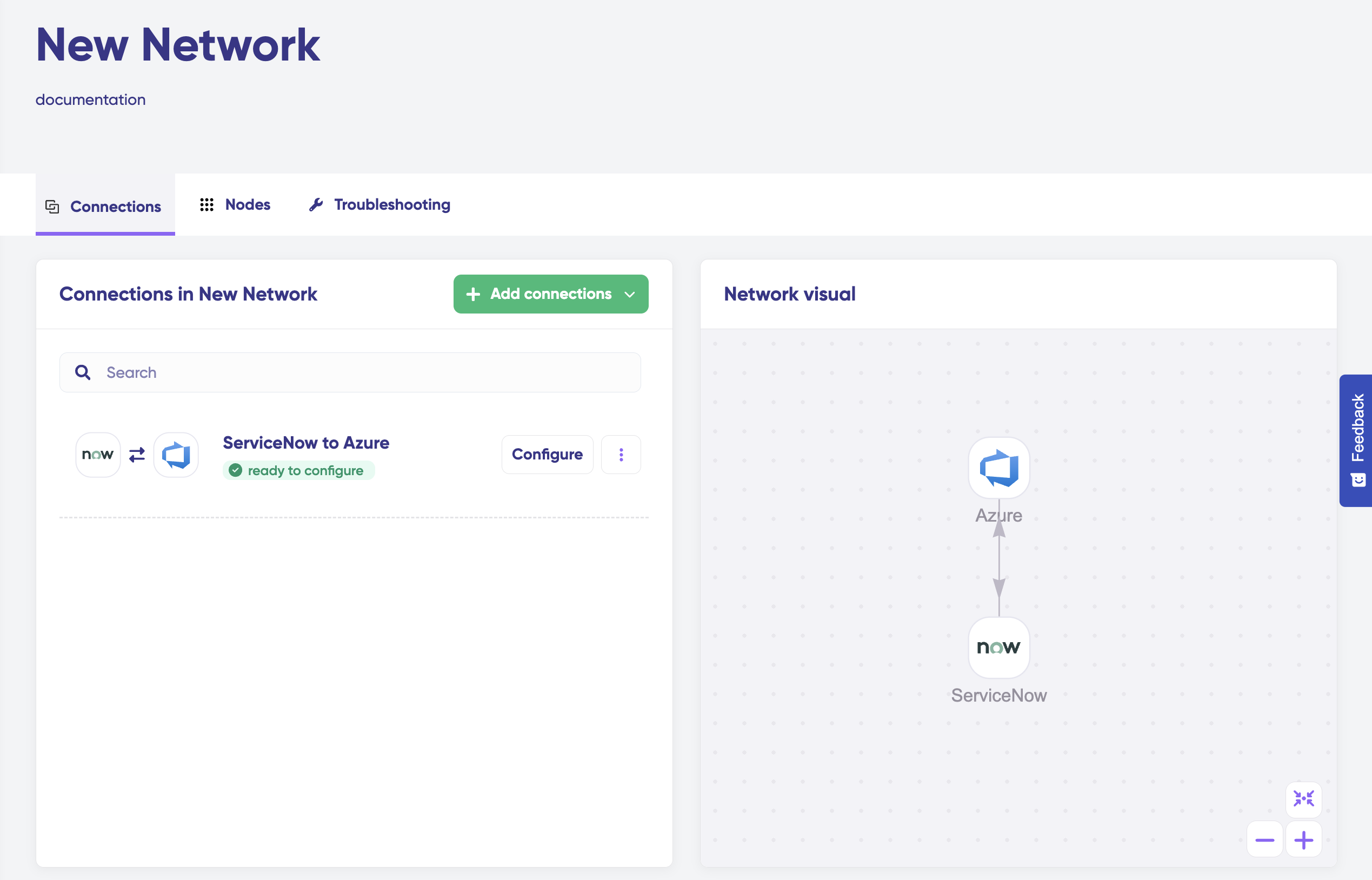

When the process completes, you'll see a success message, and your connection status will change to "Ready to configure."

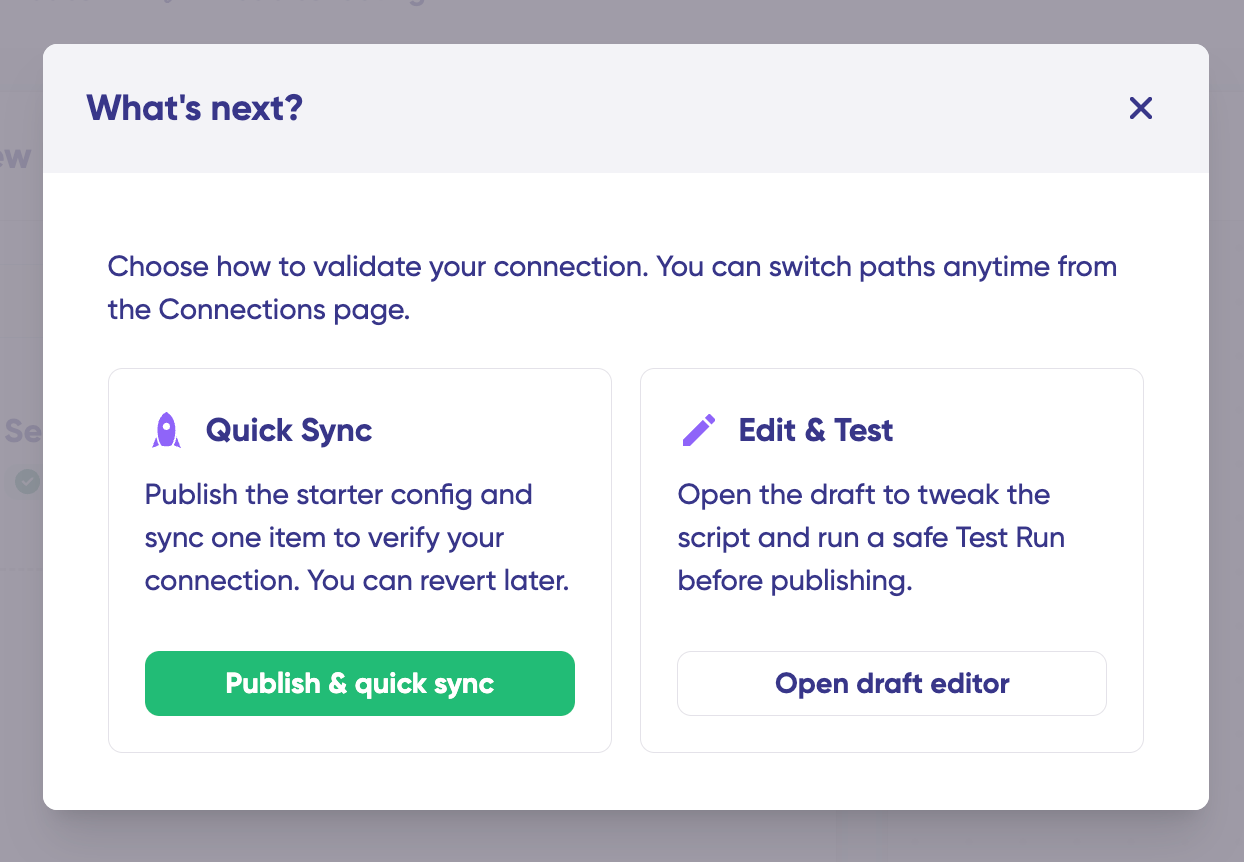

What's Next?

Once your connection is created, you'll need to configure it before it's ready to sync data:

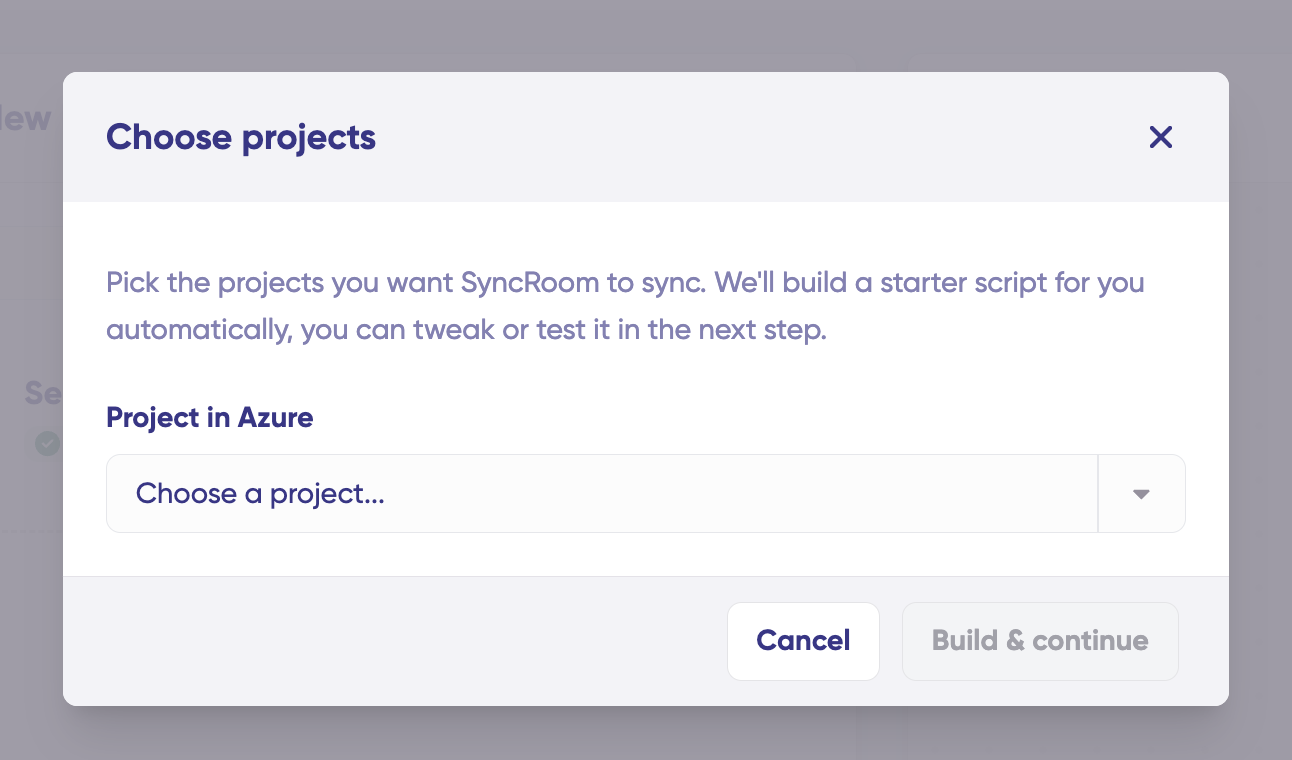

1. Configure project selection: Choose which projects to sync between your systems.
   Note: If the concept of a project does not exist in the given system, this modal will not be shown.

2. Test your connection: Use TestRun to validate your configuration before going live.

3. Publish to production: Activate the connection to begin syncing data.

Refer to the Manage Connection Configuration guide for detailed steps on configuring your connection.
